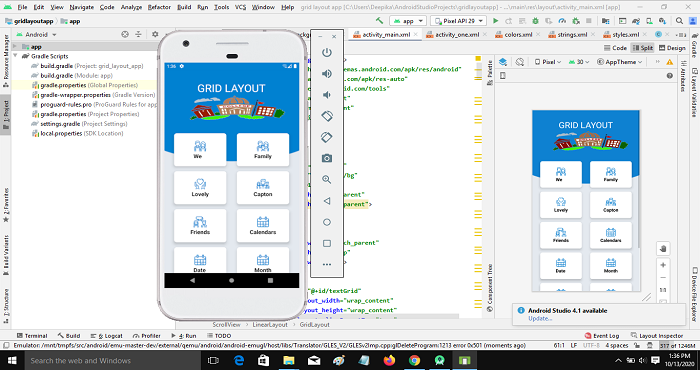

How to Design Grid Layout and Card View Layout in Android Studio

Design Grid Layout and Card View Layout in Android Studio with source code this is very responsive layout with any image , you can add many layout for college or any type of features..

MainActivity.java

package com.technic.myapplication;

import android.content.Intent;
import android.graphics.Color;

import android.os.Bundle;
import android.view.View;
import android.widget.GridLayout;
import android.widget.GridView;
import android.widget.Toast;

import androidx.appcompat.app.AppCompatActivity;
import androidx.cardview.widget.CardView;

public class MainActivity extends AppCompatActivity {

    GridLayout mainGrid;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mainGrid = (GridLayout) findViewById(R.id.mainGrid);

        //Set Event
        setSingleEvent(mainGrid);
        //setToggleEvent(mainGrid);
    }

    private void setToggleEvent(GridLayout mainGrid) {
        //Loop all child item of Main Grid
        for (int i = 0; i < mainGrid.getChildCount(); i++) {
            //You can see , all child item is CardView , so we just cast object to CardView
            final CardView cardView = (CardView) mainGrid.getChildAt(i);
            cardView.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View view) {
                    if (cardView.getCardBackgroundColor().getDefaultColor() == -1) {
                        //Change background color
                        cardView.setCardBackgroundColor(Color.parseColor("#FF6F00"));
                        Toast.makeText(MainActivity.this, "State : True", Toast.LENGTH_SHORT).show();

                    } else {
                        //Change background color
                        cardView.setCardBackgroundColor(Color.parseColor("#FFFFFF"));
                        Toast.makeText(MainActivity.this, "State : False", Toast.LENGTH_SHORT).show();
                    }
                }
            });
        }
    }

    private void setSingleEvent(GridLayout mainGrid) {
        //Loop all child item of Main Grid
        for (int i = 0; i < mainGrid.getChildCount(); i++) {
            //You can see , all child item is CardView , so we just cast object to CardView
            CardView cardView = (CardView) mainGrid.getChildAt(i);
            final int finalI = i;
            cardView.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View view) {

                    Intent intent = new Intent(MainActivity.this,ActivityOne.class);
                    intent.putExtra("info","This is activity from card item index  "+finalI);
                    startActivity(intent);

                }
            });
        }
    }
}

ActivityOne.java

package com.technic.myapplication;


import android.os.Bundle;
import android.widget.TextView;

import androidx.appcompat.app.AppCompatActivity;

public class ActivityOne extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_one);

        TextView txtInfo = (TextView)findViewById(R.id.txtInfo);
        if(getIntent() != null)
        {
            String info = getIntent().getStringExtra("info");
            txtInfo.setText(info);
        }
    }
}

ADD DEPENDENCY IN GRADLE FILE

 implementation 'androidx.cardview:cardview:1.0.0'

gradle.app

apply plugin: 'com.android.application'

android {
    compileSdkVersion 30
    buildToolsVersion "30.0.2"

    defaultConfig {
        applicationId "com.technic.myapplication"
        minSdkVersion 19
        targetSdkVersion 30
        versionCode 1
        versionName "1.0"

        testInstrumentationRunner "androidx.test.runner.AndroidJUnitRunner"
    }

    buildTypes {
        release {
            minifyEnabled false
            proguardFiles getDefaultProguardFile('proguard-android-optimize.txt'), 'proguard-rules.pro'
        }
    }
}

dependencies {
    implementation fileTree(dir: "libs", include: ["*.jar"])
    implementation 'androidx.appcompat:appcompat:1.2.0'
    implementation 'androidx.constraintlayout:constraintlayout:2.0.2'
    implementation 'androidx.cardview:cardview:1.0.0'
    testImplementation 'junit:junit:4.12'
    androidTestImplementation 'androidx.test.ext:junit:1.1.2'
    androidTestImplementation 'androidx.test.espresso:espresso-core:3.3.0'

}

Manifest File

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
    package="com.technic.myapplication">

    <application
        android:allowBackup="true"
        android:icon="@mipmap/ic_launcher"
        android:label="@string/app_name"
        android:roundIcon="@mipmap/ic_launcher_round"
        android:supportsRtl="true"
        android:theme="@style/AppTheme">
        <activity android:name=".MainActivity">
            <intent-filter>
                <action android:name="android.intent.action.MAIN" />

                <category android:name="android.intent.category.LAUNCHER" />
            </intent-filter>
        </activity>
        <activity android:name=".ActivityOne" />
    </application>

</manifest>

How to Create Grid Xml Layout File Code

YOUTUBE VIDEO

https://youtu.be/hcFSGQPAN7k

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<ScrollView xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">



    <LinearLayout
        android:orientation="vertical"
        android:background="@drawable/bg"
        android:weightSum="10"
        android:layout_width="match_parent"
        android:layout_height="match_parent">


        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="0dp"
            android:layout_weight="2">

            <TextView
                android:id="@+id/textGrid"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:layout_alignParentTop="true"
                android:layout_alignParentEnd="true"
                android:layout_marginTop="36dp"
                android:layout_marginEnd="102dp"
                android:text="GRID LAYOUT"
                android:textColor="@android:color/white"
                android:textSize="34sp" />

            <ImageView
                android:id="@+id/imageView"
                android:layout_width="302dp"
                android:layout_height="126dp"
                android:layout_alignParentEnd="true"
                android:layout_alignParentBottom="true"
                android:layout_marginEnd="37dp"
                android:layout_marginBottom="2dp"
                android:background="@drawable/clg" />

        </RelativeLayout>

        <GridLayout
        android:id="@+id/mainGrid"
        android:columnCount="2"
        android:rowCount="3"
        android:alignmentMode="alignMargins"
        android:columnOrderPreserved="false"
        android:layout_weight="8"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:padding="14dp"
        >

        <!-- Row 1 -->

        <!-- Column 1 -->
        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/me_time"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="We"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <!-- Column 2 -->
        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/family_time"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Family"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>


        <!-- Row 2 -->

        <!-- Column 1 -->
        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/lovely_time"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Lovely"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <!-- Column 2 -->
        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/team_time"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Capton"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>


        <!-- Row 2 -->

        <!-- Column 1 -->
        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/friends"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Friends"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <!-- Column 2 -->
        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Calendars"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Date"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Month"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Calendars"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Calendars"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Calendars"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

        <androidx.cardview.widget.CardView
            android:layout_width="0dp"
            android:layout_height="0dp"
            android:layout_columnWeight="1"
            android:layout_rowWeight="1"
            android:layout_marginBottom="16dp"
            android:layout_marginLeft="16dp"
            android:layout_marginRight="16dp"
            app:cardElevation="8dp"
            app:cardCornerRadius="8dp"
            >

            <LinearLayout
                android:layout_gravity="center_horizontal|center_vertical"
                android:layout_margin="16dp"
                android:orientation="vertical"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content">

                <ImageView
                    android:src="@drawable/calendar"
                    android:layout_gravity="center_horizontal"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

                <TextView
                    android:text="Calendars"
                    android:textAlignment="center"
                    android:textColor="@android:color/black"
                    android:textSize="18sp"
                    android:textStyle="bold"
                    android:layout_width="wrap_content"
                    android:layout_height="wrap_content" />

            </LinearLayout>

        </androidx.cardview.widget.CardView>

    </GridLayout>

    </LinearLayout>

</ScrollView>

activity_one.xml

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".ActivityOne">

    <TextView
        android:id="@+id/txtInfo"
        android:layout_width="wrap_content"
        android:text="Activity One"
        android:textSize="24sp"
        android:layout_centerInParent="true"
        android:layout_height="wrap_content" />

</RelativeLayout>

Get Full Source Code

Click below to get the full source code android Best card layout Application Android Project application.

APK DOWNLOAD - CLICK HERE

Cheers!

READ MORE ANDROID APPS

• Wallpaper Android App- CLICK HERE
• All IN ONE Status Saver App - CLICK HERE
• Photo Video Maker Android App - CLICK HERE
• Video Downloader Android App - CLICK HERE
• College Student Portal System App - CLICK HERE
• Call Recorder Android App - CLICK HERE
• PDF Reader App with firebase - CLICK HERE
• ShareIt Clone App - CLICK HERE
• CARD View Layout Design - CLICK HERE

ShareTweetShare

READ MORE
